Revision as of 15:03, 13 October 2023
| 7-Squad | |
|---|---|
 | |
| Overview | |
| Year | 2023 |
| Manufacturer | Pierce |
| Type | Pumper |
| Chronology | |
| Predecessor | 2008 KME Rescue-Pumper (7-2001) |
| At-a-Glance | |
|---|---|
| Model | Enforcer |
| Sub Type | Rescue-Pumper |
| Serial Number | 40241 |
| Features | |
| Pump Capacity | 1500 GPM |
| Water Capacity | 750 USG |
| Foam Capacity | 20 USG |
| Notable Dates | |
| Delivery | October 11, 2023 |
General
- Apparatus Type: Pumper
- Apparatus Sub Type: Rescue-Pumper
- Manufacturer: Pierce
- Year: 2023
- Serial Number: 40241
- VIN: 4P1BAAFF3PA025753
Chassis/Cab
- Model: Enforcer
- Crew Capacity: 6
- Doors: 4
- Front Bumper: 19" Extended
- Length: 158 inches (13 ft 2 in) overall, 70 inches (5 ft 10 in) crew cab
- Tilt: Full
- Misc. Features: TAK-4 front suspension
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Cummins L9
- Engine Specs: 450 HP
- Transmission Make/Model: Allison 3000 EVS P
Pump & Tank
- Pump Make/Model: Waterous CSU
- Pump Capacity: 1500 GPM, single-stage
- Pump Location: Midship
- Drive Type: Split-shaft
Body
- Material: Aluminum
- Length: 209.5 inches (17 ft 5.5 in)
- Misc. Features: Roll-up compartment doors
Equipment
Dimensions
- Overall Height: 119 inches (9 ft 11 in)
- Overall Length: 369.5 inches (30 ft 9.5 in)
- Wheelbase: 187.5 inches (15 ft 7.5 in)
Construction
- Dealer: Firematic Supply
- Delivery Date: October 11, 2023
Disposition

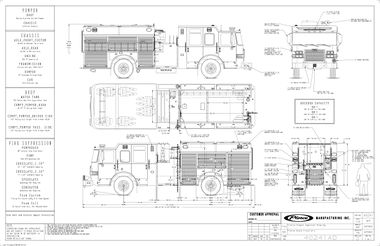

CAD Drawing:
2023 Pierce 7-Squad CAD Drawing
Spec Sheet: 2023 Pierce 7-Squad Spec Sheet
