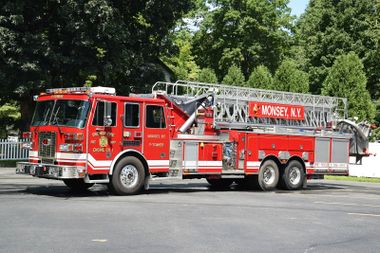

7-Tower (1998)
Jump to navigation
Jump to search
| 7-Tower | |
|---|---|
 | |
| Overview | |
| Year | 1998 |
| Manufacturer | Sutphen |
| Type | Aerial |
| Chronology | |
| Predecessor | 1980 Sutphen Telescoping Platform (7-99) |
| Successor | 2024 Pierce Ladder Platform (7-Tower) |
| At-a-Glance | |
|---|---|
| Model | TS |
| Sub Type | Telescoping Platform |
| Serial Number | HS-3282 |
| Features | |
| Aerial Height | 95' |
| Pump Capacity | 2000 GPM |
| Water Capacity | 300 USG |
| Notable Dates | |
| Delivery | July 1998 |
| Out of Service | June 10, 2024 |
General
- Apparatus Type: Aerial
- Apparatus Sub Type: Telescoping Platform
- Manufacturer: Sutphen
- Year: 1998
- Serial Number: HS-3282
- VIN: 1S9A3JFE5W1003037
- Color: Red
- NIMS Resource Typing: Aerial Type I
Chassis/Cab
- Model: TS
- Crew Capacity: 6
- Doors: 4
- Front Bumper: Extended
- Tilt: Full
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Detroit Diesel 8V-92TA
- Engine Specs: 12.1 L, V8
- Transmission Make/Model: Allison HT740
- Transmission Specs: 4-speed automatic
- Tandem Axle: Yes
Pump & Tank
- Pump Make/Model: Hale QSMG
- Pump Capacity: 2000 GPM, single-stage
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 300 USG
Aerial
- Mounting: Mid
- Vertical Reach: 95'
- Sections: 4
- Prepiped Waterway: Yes
- Outriggers: H-Style, dual set
Body
- Material: Stainless Steel
Equipment
- Generator: Onan 7.6 kW
- Reels: 2 electrical
Dimensions
- Overall Height: 136 inches (11 ft 4 in)
- Overall Length: 563 inches (46 ft 11 in)
- Wheelbase: 252 inches (21 ft 0 in)
Construction
- Delivery Date: July 1998
Disposition
- Out of Service Date: June 10, 2024
CAD Drawing:
1998 Sutphen 7-Tower CAD Drawing
