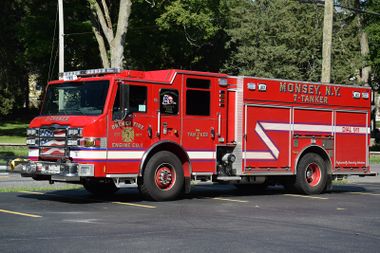

7-Tanker (2013)
Jump to navigation
Jump to search
| 7-Tanker | |
|---|---|
 | |
| Overview | |
| Year | 2013 |
| Manufacturer | Pierce |
| Type | Pumper |
| Chronology | |
| Predecessor | 1992 Sutphen Pumper (7-Tanker) |
| At-a-Glance | |
|---|---|
| Model | Velocity |
| Serial Number | 26647 |
| Features | |
| Pump Capacity | 1500 GPM |
| Water Capacity | 970 USG |
| Foam Capacity | 30 USG |
| Notable Dates | |
| Delivery | August 5, 2013 |
| In Service | September 26, 2013 |
General
- Apparatus Type: Pumper
- Manufacturer: Pierce
- Year: 2013
- Serial Number: 26647
- VIN: 4P1CV01D9DA013806
- Color: Red
- NIMS Resource Typing: Engine Type I
Chassis/Cab
- Model: Velocity
- Cab Material: Aluminum
- Crew Capacity: 7
- Doors: 4
- Raised Roof: 10" raised
- Front Bumper: 19" extended with intake and preconnect
- Length: 167 inches (13 ft 11 in) overall, 70 inches (5 ft 10 in) crew cab
- Tilt: Full
- Misc. Features: TAK-4 front suspension • Onspot chains
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Detroit Diesel DD13
- Engine Specs: 12.8 L, 500 hp, 1650 lb-ft, Inline 6
- Transmission Make/Model: Allison 4000 EVS
- Transmission Specs: 5-speed automatic
Pump & Tank
- Pump Make/Model: Pierce/Darley PUC
- Pump Capacity: 1500 GPM, Single stage
- Pump Location: Midship, under crew cab
- Panel Location: Driver side midship (compartment)
- Drive Type: REPTO
- Water Capacity: 970 USG
- Foam System: Pierce Husky 3
- Foam Type: Class A
- Foam Capacity: 30 USG
- Hose Reels: 1 booster in rear compartment
- Features: Pump and Roll capable
Body
- Body Type: Rescue-Pumper style
- Material: Stainless Steel
- Length: 208.5 inches (17 ft 4.5 in)
Equipment
- Generator: Smart Power HR-110 10 kW PTO hydraulic
- Reels: 1 electric in rear compartment
Dimensions
- Overall Height: 115.5 inches (9 ft 7.5 in)
- Overall Length: 397.5 inches (33 ft 1.5 in)
- Wheelbase: 190 inches (15 ft 10 in)
Construction
- Factory: Appleton, WI
- Dealer: Firematic Supply
- Construction Started: May 10, 2013
- Construction Complete: June 28, 2013
- Delivery Date: August 5, 2013
Disposition
- In Service Date: September 26, 2013
CAD Drawing:
2013 Pierce 7-Tanker CAD Drawing
Spec Sheet: 2013 Pierce 7-Tanker Spec Sheet
