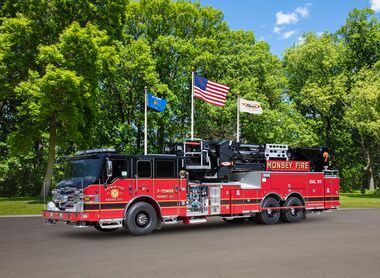

7-Tower (2024)
Jump to navigation
Jump to search
| 7-Tower | |
|---|---|
 | |
| Overview | |
| Year | 2024 |
| Manufacturer | Pierce |
| Type | Aerial |
| Chronology | |
| Predecessor | 1998 Sutphen Telescoping Platform (7-Tower) |
| At-a-Glance | |
|---|---|
| Model | Velocity |
| Sub Type | Ladder Platform |
| Serial Number | 38013 |
| Features | |
| Aerial Height | 100' |
| Water Capacity | 300 USG |
General
- Apparatus Type: Aerial
- Apparatus Sub Type: Ladder Platform
- Manufacturer: Pierce
- Year: 2024
- Serial Number: 38013
- VIN: 4P1BCAGF8RA026439
Chassis/Cab
- Model: Velocity
- Crew Capacity: 6
- Doors: 4
- Length: 161.5 inches (13 ft 5.5 in) overall, 70 inches (5 ft 10 in) crew cab
- Tilt: Full
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Cummins X15
- Tandem Axle: Yes
Pump & Tank
- Water Capacity: 300 USG
Aerial
- Aerial Model: Ascendant
- Mounting: Mid
- Vertical Reach: 100'
- Horizontal Reach: 93'
- Sections: 5
- Material: Steel
- Tip Load: 1,000 lb dry, 500 lb wet
- Prepiped Waterway: Yes
- Outriggers: 1 set of H-style (18' spread) & 4 down-jacks
- Features: 14.3 sq ft bucket
Body
- Body Type: Aluminum
- Length: 355 inches (29 ft 7 in)
- Misc. Features: Rollup compartment doors
Equipment
Dimensions
- Overall Height: 128 inches (10 ft 8 in)
- Overall Length: 516.5 inches (43 ft 0.5 in)
- Wheelbase: 265 inches (22 ft 1 in)
Construction
- Factory: Appleton, WI
- Dealer: Firematic Supply
- Construction Started: April 2024
- Construction Complete: June 2024
Disposition
CAD Drawing:
2022 Pierce 7-Tower CAD Drawing
