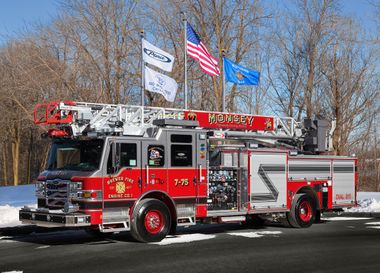

7-75 (2018)

7-75
Overview
Year	2018 (2018)
Manufacturer	Pierce
Type	Aerial
Chronology
Predecessor	None

At-a-Glance
Model	Velocity
Sub Type	Ladder
Serial Number	31137
Features
Aerial Height	75'
Pump Capacity	2000 GPM
Water Capacity	500 USG
Notable Dates
Delivery	March 6, 2018
In Service	July 25, 2018

General

• Apparatus Type: Aerial
• Apparatus Sub Type: Ladder
• Manufacturer: Pierce
• Year: 2018
• Serial Number: 31137
• VIN: 4P1BCAGFXJA018573
• Color: Gray metallic over maroon
• NIMS Resource Typing: Aerial Ladder Type III

Chassis/Cab

• Model: Velocity
• Cab Material: Aluminum
• Crew Capacity: 7
• Doors: 4
• Raised Roof: 10" notched
• Front Bumper: 19" extended with two preconnects
• Length: 167 inches (13 ft 11 in) overall • 70 inches (5 ft 10 in) crew cab
• Tilt: Full
• Misc. Features: Barrier style doors • TAK-4 front suspension • Onspot chains

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Detroit Diesel DD13
• Engine Specs: 12.8 L, 505 hp, 1750 lb-ft, Inline 6
• Transmission Make/Model: Allison 4000 EVS
• Transmission Specs: 5-speed automatic

Pump & Tank

• Pump Make/Model: Hale Qmax200
• Pump Capacity: 2000 GPM, single-stage
• Pump Location: Midship
• Drive Type: Split-shaft
• Water Capacity: 500 USG

Aerial

• Aerial Model: 75 HAL
• Mounting: Rear
• Vertical Reach: 75'
• Horizontal Reach: 68'
• Sections: 3
• Material: Aluminum
• Tip Load: 750 lbs dry, 500 lbs wet
• Prepiped Waterway: Yes
• Outriggers: H-Style, Single set, 16' spread
• Features: Pinnable waterway

Body

• Material: Aluminum
• Length: 272 inches (22 ft 8 in) overall • 208.5 inches (17 ft 4.5 in) body • 60 inches (5 ft 0 in) pumphouse
• Misc. Features: Texas Chute Out (side stack hosebed) • Roll up compartment doors

Equipment

• Generator: Smart Power HR-10 10 kW PTO hydraulic
• Reels: 1 electrical

Dimensions

• Overall Height: 137 inches (11 ft 5 in)
• Overall Length: 447 inches (37 ft 3 in)
• Wheelbase: 233.5 inches (19 ft 5.5 in)

Construction

• Factory: Appleton, WI
• Dealer: Firematic Supply
• Construction Started: October 2017
• Construction Complete: January 2018
• Delivery Date: March 6, 2018

Disposition

• In Service Date: July 25, 2018
• Misc. History: Originally intended to replace the 2001 Sutphen Pumper (7-2000), that plan was ultimately not implemented. The 1986 GMC/Sutphen Mini-Pumper (7-MP) was retired in order to make room in the firehouse, however this truck is not considered to be a direct replacement for the MP, instead considered an additional piece.

CAD Drawing: 2018 Pierce 7-75 CAD Drawing
