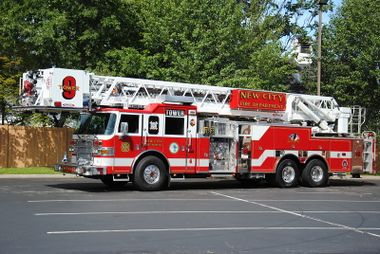

9-Tower (2006)
Jump to navigation
Jump to search
| 9-Tower | |
|---|---|
 | |
| Overview | |
| Year | 2006 |
| Manufacturer | Pierce |
| Type | Aerial |
| Chronology | |
| Predecessor | 1988 Pierce Ladder Platform (9-Tower) |
General
- Apparatus Type: Aerial
- Apparatus Sub Type: Ladder Platform
- Manufacturer: Pierce
- Year: 2006
- Serial Number: 18235
- VIN: 4P1CD01F96A006488
- Color: Red over white over red
- NIMS Resource Typing: Aerial Type I
Chassis/Cab
- Model: Dash 2000
- Crew Capacity: 6
- Doors: 4
- Raised Roof: 10" notched
- Front Bumper: Extended
- Length: 67 inches (5 ft 7 in) crew cab
- Tilt: Full
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Caterpillar C13
- Engine Specs: 12.5 L, 525 hp, 1650 lb-ft, Inline 6
- Transmission Make/Model: Allison 4000 EVS
- Transmission Specs: 5-speed automatic
- Tandem Axle: Yes
Pump & Tank
- Pump Make/Model: Waterous
- Pump Capacity: 1750 GPM
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 300 USG
Aerial
- Mounting: Rear
- Vertical Reach: 100'
- Sections: 3
- Material: Steel
- Prepiped Waterway: Yes
- Outriggers: H-Style front and rear
- Features: 92" Bucket • Lyfe accessories
Body
- Material: Aluminum
Equipment
- Generator: Harrison MCR 10 kW PTO hydraulic
- Reels: 1 electric
- Misc. Equipment: Hurst tool and cribbing
Dimensions
Construction
- Factory: Appleton, WI
- Dealer: Tyler Fire Equipment
- Construction Complete: September 2006
- Delivery Date: September 25, 2006
Disposition
- Dedication Date: June 9, 2007
