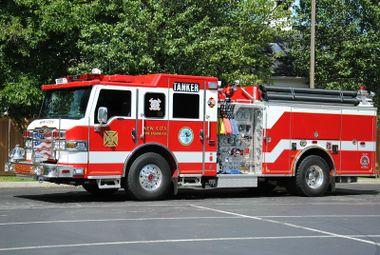

9-Tanker (2012)
Jump to navigation
Jump to search
| 9-Tanker | |
|---|---|
 | |
| Overview | |
| Year | 2012 |
| Manufacturer | Pierce |
| Type | Pumper |
| Subsequently | Princeton Engine 2 |
| Chronology | |
| Predecessor | 1997 Pierce Pumper (9-Tanker) |
| Successor | 2018 Rosenbauer Pumper (9-Tanker) |
| At-a-Glance | |
|---|---|
| Model | Velocity |
| Serial Number | 24916 |
| Features | |
| Pump Capacity | 1750 GPM |
| Water Capacity | 1000 USG |
| Foam Capacity | 30 USG |
| Notable Dates | |
| Delivery | December 12, 2011 |
| In Service | February 14, 2012 |
| Dedication | September 22, 2012 |
| Out of Service | March 18, 2019 |
General
- Apparatus Type: Pumper
- Manufacturer: Pierce
- Year: 2012
- Serial Number: 24916
- VIN: 4P1CV01D5CA012411
- Color: Red over white over red
- NIMS Resource Typing: Engine Type I
Chassis/Cab
- Model: Velocity
- Cab Material: Aluminum
- Crew Capacity: 6
- Doors: 4
- Raised Roof: 10" raised
- Front Bumper: 19" extended with intake and preconnect
- Length: 167 inches (13 ft 11 in) overall, 70 inches (5 ft 10 in) crew cab
- Tilt: Full
- Misc. Features: TAK-4 front suspension • Onspot chains
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Detroit Diesel DD13
- Engine Specs: 12.8 L, 450 hp, 1550 lb-ft, Inline 6
- Transmission Make/Model: Allison 4000 EVS
- Transmission Specs: 5-speed automatic
Pump & Tank
- Pump Make/Model: Waterous CMU
- Pump Capacity: 1750 GPM, two-stage
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 1000 USG
- Foam System: Pierce Husky 12, 0.3-6%
- Foam Capacity: 30 USG
Body
- Material: Aluminum
- Length: 205.5 inches (17 ft 1.5 in)
- Misc. Features: Zico ladder rack
Equipment
- Generator: Harrison MCR 10 kW PTO hydraulic
- Reels: 1 electric in rear compartment
Dimensions
- Overall Height: 120 inches (10 ft 0 in)
- Overall Length: 382 inches (31 ft 10 in)
- Wheelbase: 191.5 inches (15 ft 11.5 in)
Construction
- Factory: Appleton, WI
- Dealer: Firematic Supply
- Construction Started: October 11, 2011
- Construction Complete: November 25, 2011
- Delivery Date: December 12, 2011
Disposition
- In Service Date: February 14, 2012
- Dedication Date: September 22, 2012
- Out of Service Date: March 18, 2019
- Purchaser: Princeton Fire Department, Princeton, MA
- Sale Date: March 23, 2019
- Sale Price: $341,000 (equivalent to $406,377 in 2023)
CAD Drawing:
2012 Pierce 9-Tanker CAD Drawing
