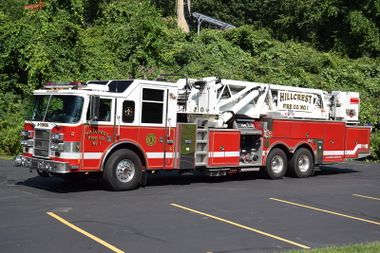

6-Tower (2002)
Jump to navigation
Jump to search
| 6-Tower | |
|---|---|
 | |
| Overview | |
| Year | 2002 |
| Manufacturer | Pierce |
| Type | Aerial |
| Chronology | |
| Predecessor | 1977 Hendrickson/Pierce/Pitman Aerial (6-65) |
| At-a-Glance | |
|---|---|
| Model | Dash 2000 |
| Sub Type | Ladder Platform |
| Serial Number | 13310 |
| Features | |
| Aerial Height | 95' |
| Pump Capacity | 1500 GPM |
| Water Capacity | 300 USG |
| Notable Dates | |
| Delivery | August 15, 2002 |
| In Service | March 17, 2003 |
| Dedication | September 28, 2002 |
General
- Apparatus Type: Aerial
- Apparatus Sub Type: Ladder Platform
- Manufacturer: Pierce
- Year: 2002
- Serial Number: 13310
- VIN: 4P1CT02S02A002418
- Color: White over red
- NIMS Resource Typing: Aerial Platform Type I
- Dept. Designation: #2
Chassis/Cab
- Model: Dash 2000
- Cab Material: Aluminum
- Crew Capacity: 6
- Doors: 4
- Raised Roof: 16"
- Length: 139.75 inches (11 ft 7.75 in) overall, 67 inches (5 ft 7 in) crew cab
- Tilt: Full
- Misc. Features: TAK-4 front suspension
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Detroit Diesel Series 60
- Engine Specs: 12.7 L, 500 hp, 1550 lb-ft, Inline 6
- Transmission Make/Model: Allison HD4060P
- Transmission Specs: 5-speed automatic
- Tandem Axle: Yes
Pump & Tank
- Pump Make/Model: Hale 8FG
- Pump Capacity: 1500 GPM, single-stage
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 300 USG
Aerial
- Aerial Model: MMP95A
- Mounting: Midship
- Vertical Reach: 95'
- Horizontal Reach: 89'
- Sections: 5
- Material: Steel
- Tip Load: 1000 lbs dry, 500 lbs wet
- Prepiped Waterway: Yes
- Outriggers: H-Style, dual set, 18' (front) and 16' (rear) spread
- Features: 68" (18 sq ft) bucket • Stokes basket mounted on base section • 16' roof ladder mounted inside fly section • Lyfe accessories
Body
- Material: Aluminum
- Length: 407 inches (33 ft 11 in)
Equipment
- Generator: Amps 10 kW hydraulic
- Reels: 2 electrical
Dimensions
- Overall Height: 128 inches (10 ft 8 in)
- Overall Length: 553.5 inches (46 ft 1.5 in)
- Wheelbase: 270 inches (22 ft 6 in)
Construction
- Factory: Appleton, WI
- Dealer: Fire & Safety Services
- Delivery Date: August 15, 2002
Disposition
- In Service Date: March 17, 2003
- Dedication Date: September 28, 2002
CAD Drawing:
2002 Pierce 6-Tower CAD Drawing
Spec Sheet: 2002 Pierce 6-Tower Spec Sheet
