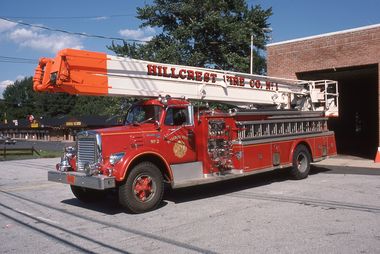

6-65 (1962)
Jump to navigation
Jump to search
| 6-65 | |
|---|---|
 | |
| Overview | |
| Year | 1962 |
| Manufacturer | International/Young/Pitman |
| Type | Aerial |
| Chronology | |
| Predecessor | 1946 Buffalo Pumper (6-Quad) |
| Successor | 1977 Hendrickson/Pierce/Pitman Articulating Platform (6-65) |
General
- Apparatus Type: Aerial
- Apparatus Sub Type: Articulating Platform
- Manufacturer: International/Young/Pitman
- Year: 1962
- Serial Number: 62-17
- Color: Red
- NIMS Resource Typing: Aerial Type III
- Dept. Designation: #2
Chassis/Cab
- Manufacturer: International
- Model: V-206A
- Crew Capacity: 3 seated
- Doors: 2
Drivetrain
- Propulsion: Gasoline
- Engine Specs: 230 hp, V8
Pump & Tank
- Pump Make/Model: Hale QLD
- Pump Capacity: 750 GPM
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 190 USG
- Hose Reels: 1 booster above pump
Aerial
- Manufacturer: Pitman
- Aerial Model: Snorkel 65SFF
- Mounting: Rear
- Vertical Reach: 65'
- Sections: 2
- Material: Steel
- Tip Load: 1000 lbs dry
- Prepiped Waterway: Yes
- Outriggers: A-Style, two pair
Body
- Manufacturer: Young
Construction
- Cost: $50,000 (equivalent to $447,910 in 2021)
- Delivery Date: November 9, 1962
Disposition
- Purchaser: Harrisburg, IL
- Misc. History: First snorkel quint built by Young, and first Snorkel in Rockland County
