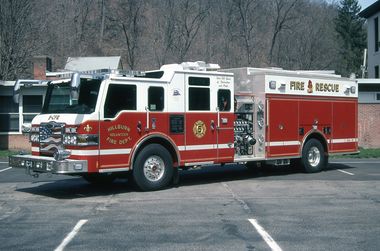

5-CFR (2009)

5-CFR
Overview
Year	2009 (2009)
Manufacturer	Pierce
Type	Pumper
Chronology
Predecessors	1984 Sutphen/SVI Heavy Rescue (5-Rescue) 1989 Pierce Pumper (5-Tanker)

At-a-Glance
Model	Velocity
Sub Type	Rescue-Pumper
Serial Number	21278
Features
Pump Capacity	1500 GPM
Water Capacity	750 USG
Foam Capacity	50 USG
Notable Dates
Delivery	April 3, 2009
Dedication	June 6, 2009

General

• Apparatus Type: Pumper
• Apparatus Sub Type: Rescue-Pumper
• Manufacturer: Pierce
• Year: 2009
• Serial Number: 21278
• VIN: 4P1CV01F49A009316
• Color: White over red
• NIMS Resource Typing: Engine Type I

Chassis/Cab

• Model: Velocity
• Cab Material: Aluminum
• Crew Capacity: 10
• Doors: 4
• Raised Roof: 10"
• Front Bumper: 22" extended with preconnect
• Length: 187 inches (15 ft 7 in) overall, 87 inches (7 ft 3 in) crew cab
• Tilt: Split
• Misc. Features: TAK-4 front suspension

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Cat C13
• Engine Specs: 12.5 L, 525 hp, 1750 lb-ft, Inline 6
• Transmission Make/Model: Allison 4000 EVS
• Transmission Specs: 5-speed automatic

Pump & Tank

• Pump Make/Model: Waterous CSU
• Pump Capacity: 1500 GPM, single-stage
• Pump Location: Midship
• Drive Type: Split-shaft
• Water Capacity: 750 USG
• Foam System: Pierce Hercules CAFS
• Foam Capacity: 50 USG

Body

• Body Type: Heavy Duty Rescue Pumper
• Length: 243.75 inches (20 ft 3.75 in)

Equipment

• Generator: Harrison MPC 20 kW hydraulic PTO
• Light Tower: Will-Burt Night Scan Powerlite 3.0, 210,000 lumens
• Reels: 2 electric, 2 hydraulic
• Winch: Warn M15000, 15000 lb, in front bumper
• Cascade System: Yes

Dimensions

• Overall Height: 128 inches (10 ft 8 in)
• Overall Length: 451 inches (37 ft 7 in)
• Wheelbase: 242.50 inches (20 ft 2.50 in)

Construction

• Factory: Appleton, WI
• Dealer: Tyler Fire Equipment
• Delivery Date: April 3, 2009

Disposition

• In Service Date: 2009
• Dedication Date: June 6, 2009

CAD Drawing: 21278 Drawing
