20-Tower

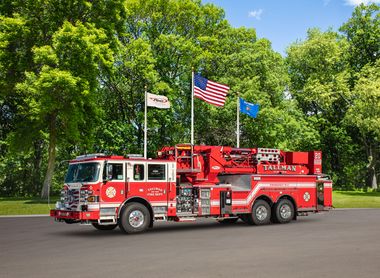

20-Tower 2020.jpg
Overview
Year 2020; 2 years ago (2020)
Manufacturer Pierce
Type Aerial
Chronology
Predecessor 1998 Pierce Ladder Platform (20-Tower)


At-a-Glance
Model Arrow XT
Sub Type Ladder Platform
Serial Number 34444
Features
Aerial Height 100'
Pump Capacity 2000 GPM
Water Capacity 300 USG
Notable Dates
Delivery November 5, 2020
In Service March 1, 2021

General

  • Apparatus Type: Aerial
  • Apparatus Sub Type: Ladder Platform
  • Manufacturer: Pierce
  • Year: 2020
  • Serial Number: 34444
  • VIN: 4P1BCAGF2LA022104
  • Color: Red over white over red

Chassis/Cab

  • Model: Arrow XT
  • Cab Material: Aluminum
  • Crew Capacity: 6
  • Doors: 4
  • Length: 150.75 inches (12 ft 6.75 in) overall, 67 inches (5 ft 7 in) crew cab
  • Tilt: Full

Drivetrain

  • Propulsion: Diesel
  • Engine Make/Model: Cummins X15
  • Engine Specs: 14.9 L, 600 hp, 1850 lb-ft, Inline 6
  • Transmission Make/Model: Allison 4500 EVS
  • Transmission Specs: 5-speed automatic
  • Tandem Axle: Yes

Pump & Tank

  • Pump Make/Model: Waterous CSU
  • Pump Capacity: 2000 GPM, single-stage
  • Pump Location: Midship
  • Drive Type: Split-shaft
  • Water Capacity: 300 USG

Aerial

  • Aerial Model: Ascendant
  • Mounting: Mid
  • Vertical Reach: 100'
  • Horizontal Reach: 93'
  • Sections: 5
  • Material: Steel
  • Tip Load: 1,000 lb dry, 500 lb wet
  • Prepiped Waterway: Yes
  • Outriggers: 1 set of H-style (18' spread) & 4 down-jacks
  • Features: 14.3 sq ft bucket

Body

  • Material: Aluminum
  • Length: 355 inches (29 ft 7 in)
  • Misc. Features: Rollup compartment doors

Equipment

Dimensions

  • Overall Height: 131 inches (10 ft 11 in)
  • Overall Length: 507.75 inches (42 ft 3.75 in)
  • Wheelbase: 262 inches (21 ft 10 in)

Construction

  • Factory: Appleton, WI
  • Dealer: Firematic Supply
  • Construction Started: May 2020
  • Construction Complete: September 2020
  • Delivery Date: November 5, 2020

Disposition

  • In Service Date: March 1, 2021


CAD Drawing: PDF 2020 Pierce 20-Tower CAD Drawing

Spec Sheet: PDF 2020 Pierce 20-Tower Spec Sheet
