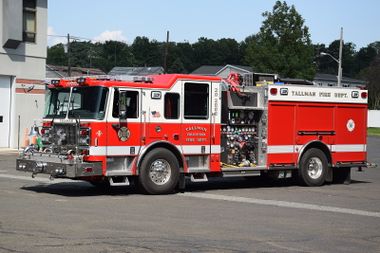

20-2000 (2017)
Jump to navigation
Jump to search
| 20-2000 | |
|---|---|
 | |
| Overview | |
| Year | 2017 |
| Manufacturer | Seagrave |
| Type | Pumper |
| Chronology | |
| Predecessor | 1999 Pierce Pumper (20-2000) |
| At-a-Glance | |
|---|---|
| Model | Marauder II TB70CS |
| Sub Type | Rescue-Pumper |
| Serial Number | 78H99 |
| Features | |
| Pump Capacity | 2000 GPM |
| Water Capacity | 1000 USG |
| Foam Capacity | 30 USG |
| Notable Dates | |
| Delivery | March 6, 2017 |
| In Service | June 20, 2017 |
General
- Apparatus Type: Pumper
- Apparatus Sub Type: Rescue-Pumper
- Manufacturer: Seagrave
- Year: 2017
- Serial Number: 78H99
- Color: Red over white over red
- NIMS Resource Typing: Engine Type I
Chassis/Cab
- Model: Marauder II TB70CS
- Cab Material: Stainless steel
- Crew Capacity: 6
- Doors: 4
- Raised Roof: 16"
- Front Bumper: 24" extended with intake and preconnect
- Length: 165" (72" crew cab)
- Tilt: Full
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Cummins ISX12
- Engine Specs: 11.9 L, 500 hp, 1645 lb-ft, Inline 6
- Transmission Make/Model: Allison 4000 EVS
- Transmission Specs: 5-speed automatic
Pump & Tank
- Pump Make/Model: Waterous CSU
- Pump Capacity: 2000 GPM, single-stage
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 1000 USG
- Foam System: Waterous Advantus 6
- Foam Capacity: 30 USG
- Hose Reels: 1 booster, 1 forestry above pump panel
Body
- Material: Stainless steel
- Length: 238 inches (19 ft 10 in)
Equipment
- Generator: Harrison MCR 12kW hydraulic PTO
- Reels: 1 electric
Dimensions
- Overall Height: 124.5 inches (10 ft 4.5 in)
- Overall Length: 403 inches (33 ft 7 in)
- Wheelbase: 205.5 inches (17 ft 1.5 in)
Construction
- Factory: Clintonville, WI
- Dealer: Hudson Valley Fire Equipment, LLC
- Delivery Date: March 6, 2017
Disposition
- In Service Date: June 20, 2017
CAD Drawing:
2017 Seagrave 20-2000 CAD Drawing
