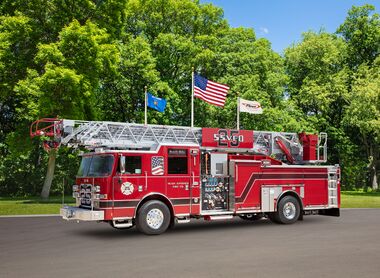

| 25-99 | |
|---|---|
 | |
| Overview | |
| Year | 2022 |
| Manufacturer | Pierce |
| Type | Aerial |
| Chronology | |
| Predecessor | 1991 Spartan/LTI Ladder (25-1575) |
| At-a-Glance | |
|---|---|
| Model | Arrow XT |
| Sub Type | Ladder |
| Serial Number | 37586 |
| Features | |
| Aerial Height | 107' |
| Water Capacity | 500 USG |
General
- Apparatus Type: Aerial
- Apparatus Sub Type: Ladder
- Manufacturer: Pierce
- Year: 2022
- Serial Number: 37586
- Color: Red
Chassis/Cab
- Model: Arrow XT
- Cab Material: Aluminum
- Doors: 4
- Raised Roof: Yes, notched
- Front Bumper: Extended
- Length: 169.25 inches (14 ft 1.25 in) overall, 81 inches (6 ft 9 in) crew cab
- Tilt: Ful
Drivetrain
- Propulsion: Diesel
Pump & Tank
- Pump Make/Model: Waterous CSU
- Pump Capacity: 2000 GPM, single-stage
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 500 USG
Aerial
- Aerial Model: Ascendant
- Mounting: Rear
- Vertical Reach: 107'
- Horizontal Reach: 100'
- Sections: 4
- Material: Steel
- Tip Load: 750 lbs dry, 500 lbs wet
- Prepiped Waterway: Yes
- Outriggers: 1 set of H-style (18' spread) & 1 down-jack
Body
- Material: Aluminum
- Misc. Features: Rollup compartment doors
Equipment
Dimensions
Construction
- Factory: Appleton, WI
- Dealer: Firematic Supply
Disposition
CAD Drawing:
2022 Pierce 25-99 CAD Drawing
