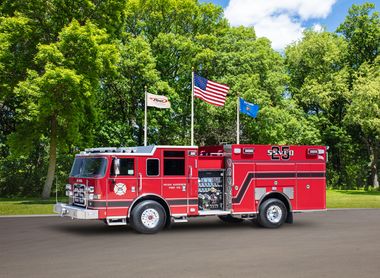

25-1500 (2020)

25-1500
Overview
Year	2020 (2020)
Manufacturer	Pierce
Type	Pumper
Chronology
Predecessor	2003 Ford/4 Guys Mini-Pumper (25-MP)

At-a-Glance
Model	Arrow XT
Sub Type	Rescue-Pumper
Serial Number	34527
Features
Pump Capacity	1500 GPM
Water Capacity	750 USG
Notable Dates
Delivery	July 17, 2020
In Service	September 2020

General

• Apparatus Type: Pumper
• Apparatus Sub Type: Rescue-Pumper
• Manufacturer: Pierce
• Year: 2020
• Serial Number: 34527
• VIN: 4P1BAAGF8LA021903
• Color: White roof over red body

Chassis/Cab

• Model: Arrow XT
• Cab Material: Aluminum
• Crew Capacity: 6
• Doors: 4
• Raised Roof: Yes
• Front Bumper: Extended
• Length: 155.25 inches (12 ft 11.25 in) overall, 67 inches (5 ft 7 in) crew cab
• Tilt: Full

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Cummins ISX15
• Engine Specs: 14.9 L, 600 hp, 1850 lb-ft, Inline 6
• Transmission Make/Model: Allison 4000 EVS
• Transmission Specs: 5-speed automatic

Pump & Tank

• Pump Make/Model: Waterous CSU
• Pump Capacity: 1500 GPM, single-stage
• Pump Location: Midship
• Drive Type: Split-shaft
• Water Capacity: 750 USG
• Hose Reels: Booster over pump

Body

• Material: Aluminum
• Length: 212.50 inches (17 ft 8.50 in)

Equipment

Dimensions

• Overall Height: 120 inches (10 ft 0 in)
• Overall Length: 373.25 inches (31 ft 1.25 in)
• Wheelbase: 181.50 inches (15 ft 1.50 in)

Construction

• Factory: Appleton, WI
• Dealer: Firematic Supply
• Construction Complete: May 2020
• Delivery Date: July 17, 2020

Disposition

• In Service Date: September 2020

CAD Drawing: 2020 Pierce 25-1500 CAD Drawing

Spec Sheet: 2020 Pierce 25-1500 Spec Sheet
