4-99 (2011)

From Rockland Apparatus
Jump to navigation Jump to search
4-99

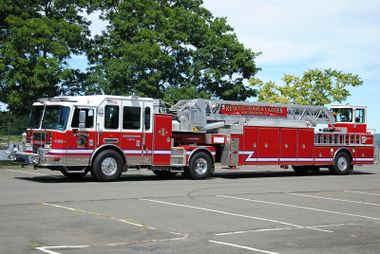

4-99 2011.jpg
Overview
Year 2011; 9 years ago (2011)
Manufacturer KME
Type Aerial
Chronology
Predecessor 1969 Peter Pirsch Tractor Drawn Ladder (4-99)


At-a-Glance
Model Predator LFD
Sub Type Tractor Drawn Aerial
Serial Number GSO-7933
Cost $896,128 (equivalent to $1,067,931 in 2019)
Features
Aerial Height 100'
Notable Dates
Dedication September 17, 2011

General

  • Apparatus Type: Aerial
  • Apparatus Sub Type: Tractor Drawn Aerial
  • Manufacturer: KME
  • Year: 2011
  • Serial Number: GSO-7933
  • VIN: 1K9AF4280BN058054
  • Color: White over red
  • NIMS Resource Typing: Aerial Type II

Chassis/Cab

  • Model: Predator LFD
  • Crew Capacity: 8 plus tillerman
  • Doors: 4
  • Raised Roof: 12"
  • Front Bumper: 18" extended
  • Length: 141.5 inches (11 ft 9.5 in) overall, 67.5 inches (5 ft 7.5 in)
  • Tilt: Full

Drivetrain

  • Propulsion: Diesel
  • Engine Make/Model: Cummins ISM
  • Engine Specs: 500 hp
  • Transmission Make/Model: Allison 4000 EVS
  • Transmission Specs: 5-Speed automatic

Aerial

  • Aerial Model: AerialCat
  • Mounting: Mid
  • Vertical Reach: 100'
  • Sections: 4
  • Material: Steel
  • Tip Load: 500 lb
  • Outriggers: H-style, 16' spread

Body

Equipment

  • Generator: Harrison 20kw Hydraulic PTO
  • Misc. Equipment: 320’ of ground ladders

Dimensions

  • Overall Height: 126 inches (10 ft 6 in)
  • Overall Length: 664 inches (55 ft 4 in)
  • Wheelbase: 154 inches (12 ft 10 in) (tractor), 312 inches (26 ft 0 in) (trailer)

Construction

  • Factory: Nesquehoning, PA
  • Dealer: William H. McGuffey, Inc.
  • Cost: $896,128 (equivalent to $1,067,931 in 2019)

Disposition

  • Dedication Date: September 17, 2011
  • Misc. History: Bond for $896,128 approved by Haverstraw Village Board on December 7, 2009 using a piggy back provision in KME's contract with Hastings-On-Hudson (GSO-7836) in Westchester County, NY


CAD Drawing: PDF 2011 KME 4-99 CAD Drawing
