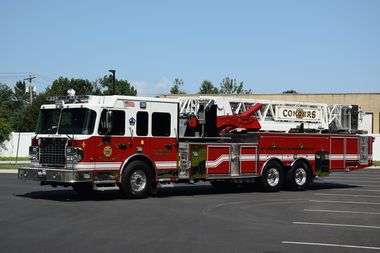

3-Tower (2013)

3-Tower
Overview
Year	2013 (2013)
Manufacturer	Spartan ERV
Type	Aerial
Chronology
Predecessor	1995 KME Tower Ladder (3-Tower)

General

• Apparatus Type: Aerial
• Apparatus Sub Type: Ladder Platform
• Manufacturer: Spartan ERV
• Year: 2013
• Serial Number: 213109
• VIN: 4S7AX2E97DC077826
• Color: White over red
• NIMS Resource Typing: Aerial Type II

Chassis/Cab

• Model: Gladiator EMFD
• Cab Material: Aluminum
• Crew Capacity: 6
• Doors: 4
• Raised Roof: 10"
• Front Bumper: 16" extended
• Length: 153 inches (12 ft 9 in) overall, 60 inches (5 ft 0 in) crew cab
• Tilt: Full

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Cummins ISX 15
• Engine Specs: 14.9 L, 550 hp, 1850 lb-ft, Inline 6
• Transmission Make/Model: Allison 4000 EVS
• Transmission Specs: 5-speed automatic
• Tandem Axle: Yes

Aerial

• Aerial Model: MP93-5-1000
• Mounting: Mid
• Vertical Reach: 93'
• Horizontal Reach: 84'
• Sections: 4
• Tip Load: 1000 lb
• Prepiped Waterway: Yes
• Outriggers: H-Style, dual set, 18' (front) and 16' (rear) spread
• Features: 18 sq. ft. bucket

Body

• Material: Stainless steel
• Length: 391.5 inches (32 ft 7.5 in)

Equipment

• Generator: Smart Power 15kW
• Reels: 3 electric

Dimensions

• Overall Height: 124 inches (10 ft 4 in)
• Overall Length: 567 inches (47 ft 3 in)
• Wheelbase: 258 inches (21 ft 6 in)

Construction

• Factory: Charlotte, MI
• Dealer: Hendrickson Fire Rescue Equipment
• Construction Complete: September 2014
• Delivery Date: November 2014

Disposition

• In Service Date: January 15, 2015
• Dedication Date: May 9, 2015

CAD Drawing: 2013 Spartan ERV 3-Tower CAD Drawing
