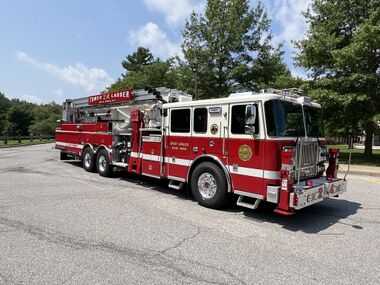

24-Tower (2023)

24-Tower
Overview
Year	2023 (2023)
Manufacturer	Seagrave
Type	Aerial
Chronology
Predecessor	1999 Spartan/Marion/Baker Telescoping Platform (24-Tower)

At-a-Glance
Model	Marauder 141 TV7HCT Aerialscope II
Sub Type	Telescoping Platform
Serial Number	F3311
Features
Aerial Height	95'
Pump Capacity	2000 GPM
Notable Dates
Delivery	August 1, 2024

General

• Apparatus Type: Aerial
• Apparatus Sub Type: Telescoping Platform
• Manufacturer: Seagrave
• Year: 2023
• Serial Number: F3311
• NIMS Resource Typing: Aerial Ladder Type III

Chassis/Cab

• Model: Marauder 141
• Cab Material: Stainless Steel
• Crew Capacity: 8
• Doors: 4
• Front Bumper: 18" extended
• Length: 141 inches (11 ft 9 in) overall, 72 inches (6 ft 0 in) crew cab
• Tilt: Full

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Cummins X12
• Engine Specs: 11.9 L, 525 hp, 1700 lb-ft, Inline 6
• Transmission Make/Model: Allison 4000 EVS
• Transmission Specs: 5-speed automatic
• Tandem Axle: Yes

Pump & Tank

• Pump Make/Model: Waterous S100D
• Pump Capacity: 2000 GPM, single-stage
• Pump Location: Midship
• Drive Type: Split-shaft

Aerial

• Aerial Model: Aerialscope II
• Mounting: Mid
• Vertical Reach: 95'
• Horizontal Reach: 82'
• Sections: 4
• Material: Steel fixed base section, aluminum telescoping sections
• Tip Load: 1000 lbs wet
• Prepiped Waterway: Yes
• Outriggers: Front and rear jacks, tormentors

Body

• Body Type: AS95 Quint
• Material: Stainless Steel
• Length: 292 inches (24 ft 4 in)

Equipment

Dimensions

• Overall Height: 132.5 inches (11 ft 0.5 in)
• Overall Length: 560.5 inches (46 ft 8.5 in)
• Wheelbase: 247 inches (20 ft 7 in)

Construction

• Factory: Clintonville, WI
• Dealer: Hudson Valley Fire Equipment
• Delivery Date: August 1, 2024

Disposition

•
  CAD Drawing
