23-1500 (2013)

From Rockland Apparatus
Jump to navigation Jump to search
23-1500

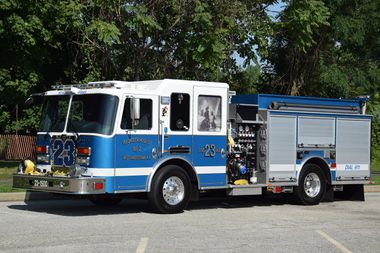

23-1500 2013.jpg
Overview
Year 2013; 7 years ago (2013)
Manufacturer KME
Type Pumper
Chronology
Predecessor 1980 Mack Pumper (23-1500)


At-a-Glance
Model Panther
Serial Number GSO-8527
Features
Pump Capacity 1500 GPM
Water Capacity 500 USG
Notable Dates
Dedication August 11, 2012

General

  • Apparatus Type: Pumper
  • Manufacturer: KME
  • Year: 2013
  • Serial Number: GSO-8527
  • VIN: 1K9AF4285DN058411
  • Color: White over blue
  • NIMS Resource Typing: Engine Type I

Chassis/Cab

  • Model: Panther
  • Crew Capacity: 6
  • Doors: 4
  • Raised Roof: Yes
  • Front Bumper: Extended with intake and preconnect
  • Tilt: Full
  • Misc. Features: Onspot chains

Drivetrain

  • Propulsion: Diesel
  • Engine Make/Model: ISL9
  • Engine Specs: 8.9 L, 400 hp, Inline 6
  • Transmission Make/Model: Allison 3000 EVS
  • Transmission Specs: 5-speed automatic

Pump & Tank

  • Pump Make/Model: Hale DSD-150
  • Pump Capacity: 1500 GPM, single-stage
  • Pump Location: Midship
  • Drive Type: Split-shaft
  • Water Capacity: 500 USG

Body

  • Material: Galvannealed steel
  • Length: 199 inches (16 ft 7 in)
  • Misc. Features: Roll up compartment doors

Equipment

Dimensions

  • Overall Height: 112 inches (9 ft 4 in)
  • Overall Length: 362 inches (30 ft 2 in)
  • Wheelbase: 177 inches (14 ft 9 in)

Construction

  • Factory: Nesquehoning, PA

Disposition

  • Dedication Date: August 11, 2012 and August 11, 2017


CAD Drawing: PDF 2013 KME 23-1500 CAD Drawing
