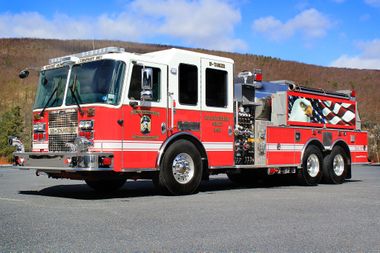

18-Tanker (2017)

18-Tanker
Overview
Year	2017 (2017)
Manufacturer	KME
Type	Tanker
Chronology
Predecessors	1984 Mack Engine (18-1000/18-Tanker) 1990 Mack/Pierce Pumper (18-1501)

At-a-Glance
Model	Predator MFD
Sub Type	Tanker
Serial Number	GSO-10333
Features
Pump Capacity	1250 GPM
Water Capacity	2900 USG
Notable Dates
In Service	August 18, 2017
Dedication	June 3, 2017

General

• Apparatus Type: Tanker
• Manufacturer: KME
• Year: 2017
• Serial Number: GSO-10333
• VIN: 1K9AF6M80HN058508
• Color: White over red
• NIMS Resource Typing: Water Tender Type I

Chassis/Cab

• Model: Predator MFD
• Crew Capacity: 6
• Doors: 4
• Raised Roof: 10"
• Front Bumper: 16" extended with inlet and preconnect
• Length: 152.5 inches (12 ft 8.5 in) overall, 62.5 inches (5 ft 2.5 in) crew cab
• Tilt: Full

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Cummins ISX12
• Engine Specs: 11.9 L, 500 hp, 1645 lb-ft, Inline 6
• Transmission Make/Model: Allison 4000 EVSR
• Transmission Specs: 5-speed automatic
• Tandem Axle: Yes

Pump & Tank

• Pump Make/Model: Hale DSD125-23L
• Pump Capacity: 1250 GPM, single-stage
• Pump Location: Midship
• Drive Type: Split-shaft
• Water Capacity: 2900 USG
• Features: Dump valves at side and rear

Body

• Body Type: Elliptical
• Material: Stainless steel
• Length: 265 inches (22 ft 1 in)
• Misc. Features: Porta Pond on driver side of tank

Dimensions

• Overall Height: 113 inches (9 ft 5 in)
• Overall Length: 420 inches (35 ft 0 in)
• Wheelbase: 218 inches (18 ft 2 in)

Construction

• Factory: Nesquehoning, PA
• Dealer: William H. McGuffey, Inc.
• Cost: $591,946 (equivalent to $676,712 in 2021)
• Construction Complete: February 2017

Disposition

• In Service Date: August 18, 2017
• Dedication Date: June 3, 2017

CAD Drawing: 2017 KME 18-Tanker CAD Drawing

•
•
•
•
•
