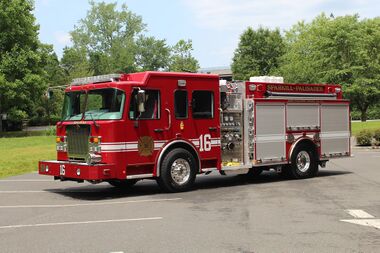

16-Engine (2025)

16-Engine
Overview
Year	2025 (2025)
Manufacturer	Spartan/Fouts Fire
Type	Pumper
Chronology
Predecessor	1993 Pierce Rescue-Pumper (16-1000)

At-a-Glance
Model	FB-94
Serial Number	73830
Features
Pump Capacity	1500 GPM
Water Capacity	1000 USG
Notable Dates
Delivery	May 2025

General

• Apparatus Type: Pumper
• Manufacturer: Spartan/Fouts Fire
• Year: 2025
• Serial Number: 73830
• Color: Red

Chassis/Cab

• Manufacturer: Spartan
• Model: FC-94
• Cab Material: Aluminum
• Crew Capacity: 6
• Doors: 4
• Front Bumper: 24" extended with preconnect
• Length: 132 inches (11 ft 0 in) overall, 54 inches (4 ft 6 in) crew cab
• Tilt: Full

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Cummins L9
• Engine Specs: 450 HP
• Transmission Make/Model: Allison
• Transmission Specs: 3000 EVS

Pump & Tank

• Pump Make/Model: Hale QMAX
• Pump Capacity: 1500 GPM
• Pump Location: 1500 GPM, single-stage
• Panel Location: Midship
• Drive Type: Split-shaft
• Water Capacity: 1000 USG
• Hose Reels: 1 booster above pump

Body

• Manufacturer: Fouts Fire
• Material: Aluminum
• Length: 214 inches (17 ft 10 in)
• Misc. Features: Roll up compartment doors

Equipment

Dimensions

• Overall Height: 112 inches (9 ft 4 in)
• Overall Length: 387 inches (32 ft 3 in)
• Wheelbase: 181 inches (15 ft 1 in)

Construction

• Dealer: Bulldog Fire Apparatus
• Delivery Date: May 2025

Disposition

CAD Drawing: 2025 Spartan/Fouts Fire 16-Engine CAD Drawing

Spec Sheet: 2025 Spartan/Fouts Fire 16-Engine Spec Sheet
