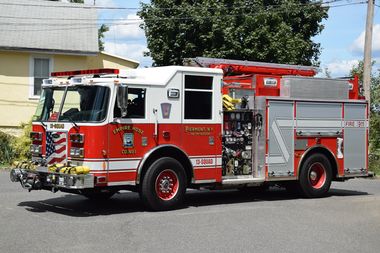

13-Squad (2014)

13-Squad
Overview
Year	2014 (2014)
Manufacturer	Pierce
Type	Pumper
Chronology
Predecessor	1997 Pierce Pumper (13-1000)

At-a-Glance
Model	Saber
Sub Type	Rescue-Pumper
Serial Number	27195
Features
Pump Capacity	1000 GPM
Water Capacity	500 USG
Foam Capacity	50 USG
Notable Dates
Delivery	April 2014
In Service	May 17, 2014
Dedication	September 27, 2014

General

• Apparatus Type: Pumper
• Apparatus Sub Type: Rescue-Pumper
• Manufacturer: Pierce
• Year: 2014
• Serial Number: 27195
• VIN: 4P1CS01A4EA014359
• Color: White over red
• NIMS Resource Typing: Engine Type I

Chassis/Cab

• Model: Saber
• Cab Material: Aluminum
• Crew Capacity: 8
• Doors: 4
• Raised Roof: 12"
• Front Bumper: 13" extended with preconnect and winch receiver
• Length: 135.75 inches (11 ft 3.75 in) overall, 57 inches (4 ft 9 in) crew cab
• Tilt: Full
• Misc. Features: Onspot chains

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Cummins ISL9
• Engine Specs: 8.9 L, 400 hp, 1250 lb-ft, Inline 6
• Transmission Make/Model: Allison 3000 EVS
• Transmission Specs: 5-speed automatic

Pump & Tank

• Pump Make/Model: Waterous CM
• Pump Capacity: 1000 GPM, two-stage
• Pump Location: Midship
• Drive Type: Split-shaft
• Water Capacity: 500 USG
• Foam System: Pierce Husky 12
• Foam Type: Class B
• Foam Capacity: 50 USG

Body

• Material: Aluminum
• Length: 136 inches (11 ft 4 in)

Equipment

• Generator: Harrison Hydra-Gen MCR 10 kW hydraulic
• Reels: 2 hydraulic, 1 electrical
• Winch: Warn 9000 lb portable with receivers at front, rear, sides

Dimensions

• Overall Height: 131.5 inches (10 ft 11.5 in)
• Overall Length: 343 inches (28 ft 7 in)
• Wheelbase: 172 inches (14 ft 4 in)

Construction

• Factory: Bradenton, FL
• Dealer: Firematic Supply
• Cost: $498,441 (equivalent to $641,513 in 2023)
• Construction Started: January 13, 2014
• Construction Complete: March 28, 2014
• Delivery Date: April 2014

Disposition

• In Service Date: May 17, 2014
• Dedication Date: September 27, 2014

CAD Drawing: 27195 Drawing
