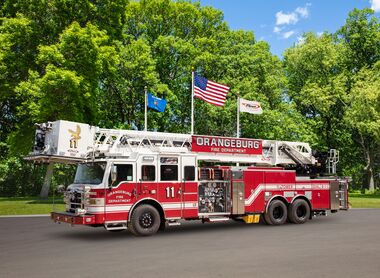

11-Tower (2022)
Jump to navigation
Jump to search
| 11-Tower | |
|---|---|
 | |
| Overview | |
| Year | 2022 |
| Manufacturer | Pierce |
| Type | Aerial |
| Chronology | |
| Predecessor | 1994 Pierce Ladder Platform (11-Tower) |
| At-a-Glance | |
|---|---|
| Model | Velocity |
| Sub Type | Ladder Platform |
| Serial Number | 36772 |
| Features | |
| Aerial Height | 100' |
| Pump Capacity | 2000 GPM |
| Water Capacity | 500 USG |
| Notable Dates | |
| In Service | January 16, 2023 |
General
- Apparatus Type: Aerial
- Apparatus Sub Type: Ladder Platform
- Manufacturer: Pierce
- Year: 2022
- Serial Number: 36772
- VIN: 4P1BCAGF8NA024376
- Color: White over red
Chassis/Cab
- Model: Velocity
- Cab Material: Aluminum
- Crew Capacity: 7
- Doors: 4
- Raised Roof: Yes
- Front Bumper: 19" extended with preconnect
- Length: 189 inches (15 ft 9 in) overall, 84 inches (7 ft 0 in) crew cab
- Tilt: Full
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Cummins X15
- Engine Specs: 14.9 L, 605 HP, 1850 lb-ft, Inline 6
- Transmission Make/Model: Allison EVS 4500
- Transmission Specs: 6-speed automatic
- Tandem Axle: Yes
Pump & Tank
- Pump Make/Model: Waterous CSU
- Pump Capacity: 2000 GPM, single-stage
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 500 USG
Aerial
- Vertical Reach: 100'
- Sections: 3
- Prepiped Waterway: Yes
- Outriggers: H-Style, dual set
Body
Equipment
Dimensions
- Overall Height: 145 inches (12 ft 1 in)
- Overall Length: 528.50 inches (44 ft 0.50 in)
- Wheelbase: 271 inches (22 ft 7 in)
Construction
- Factory: Appleton, WI
- Dealer: Firematic Supply
- Construction Started: April 2022
- Construction Complete: August 2022
- Delivery Date: September 12, 2022
Disposition
- In Service Date: January 16, 2023
CAD Drawing:
2022 Pierce 11-Tower CAD Drawing
