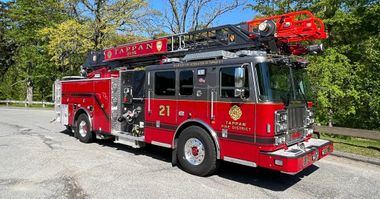

| 21-75 | |
|---|---|
 | |
| Overview | |
| Year | 2022 |
| Manufacturer | Seagrave |
| Type | Aerial |
| Chronology | |
| Predecessor | 1981 Mack/RD Murray Pumper (21-1501) |
| At-a-Glance | |
|---|---|
| Model | Marauder 141 TR54CT Meanstick |
| Sub Type | Ladder |
| Serial Number | F3131 |
| Features | |
| Aerial Height | 75' |
| Pump Capacity | 1500 GPM |
| Water Capacity | 500 USG |
| Notable Dates | |
| Delivery | May 11, 2023 |
General
- Apparatus Type: Aerial
- Apparatus Sub Type: Ladder
- Manufacturer: Seagrave
- Year: 2022
- Serial Number: F3131
- NIMS Resource Typing: Aerial Ladder Type III
Chassis/Cab
- Manufacturer: Seagrave
- Model: Marauder 141 TR54CT
- Cab Material: Stainless Steel
- Crew Capacity: 6
- Doors: 4
- Front Bumper: 18" extended with preconnect
- Length: 141 inches (11 ft 9 in) overall, 72 inches (6 ft 0 in) crew cab
- Tilt: Full
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Cummins X12
- Engine Specs: 11.9 L, 500 hp, 1700 lb-ft, Inline 6
- Transmission Make/Model: Allison 4000 EVS
- Transmission Specs: 5-speed automatic
Pump & Tank
- Pump Make/Model: Waterous CMU
- Pump Capacity: 1500 GPM, two-stage
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 500 USG
Aerial
- Aerial Model: Meanstick
- Mounting: Rear
- Vertical Reach: 75'
- Horizontal Reach: 66'
- Sections: 3
- Material: Steel
- Tip Load: 500 lbs wet
- Prepiped Waterway: Yes
- Outriggers: H-Style, Single set, 17.3' spread
Body
- Material: Stainless Steel
- Length: 233 inches (19 ft 5 in) overall • 179 inches (14 ft 11 in) body • 54 inches (4 ft 6 in) pumphouse
Equipment
- Generator: Harrison 6kW
- Reels: 1 electrical
Dimensions
- Overall Height: 138.5 inches (11 ft 6.5 in)
- Overall Length: 435.5 inches (36 ft 3.5 in)
- Wheelbase: 212 inches (17 ft 8 in)
Construction
- Factory: Clintonville, WI
- Dealer: Hudson Valley Fire Equipment
- Cost: $1,274,000 (equivalent to $1,432,487 in 2023)
- Delivery Date: May 11, 2023
Disposition
-
CAD Drawing
